BIOS PC ASRock H170 Pro4/Hyper

Discussion in 'BIOS/UEFI' started by technical, Aug 23, 2016.

BIOS PC ASRock H170 Pro4/Hyper 5 5 1votes
5/5, 1 vote

  1. technical

    technical Moderator Staff Member

    Joined:
    Dec 13, 2013
    Messages:
    64,627
    Likes Received:
    4,729
    ASRock H170 Pro4/Hyper
    BIOS 1.20

    1. ASRock Super Alloy
    2. Supports 6th Generation Intel® Core™ Processors (Socket 1151)
    3. Digi Power, 10 Power Phase Design
    4. Supports Dual Channel DDR4 2133, DDR4 Non-Z OC
    5. Hyper BCLK Engine Integrated
    6. 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
    7. AMD Quad CrossFireX™, CrossFireX™
    8. Graphics Output Options: DVI-D, HDMI
    9. 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
    10. 1 SATA Express, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
    11. 8 USB 3.0 (2 Front, 6 Rear)

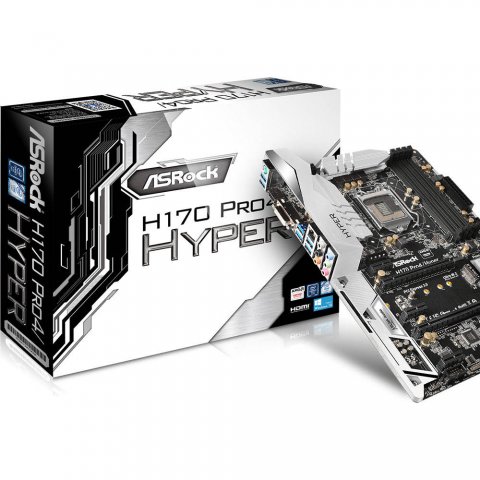

    http://www.asrock.com/mb/photo/H170 Pro4Hyper(L1).jpg


    Attached Files:

    #1 technical, Aug 23, 2016
