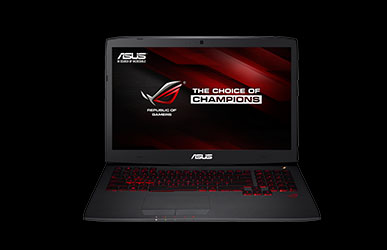

ASUS ROG G751JT
VER: 208



• Processor
  Intel® Core™ i7 4710HQ Processor
• Operating System
  Windows 8.1 Pro
  Windows 8.1
• Chipset
  Intel® HM87 Express Chipset
• Memory
  DDR3L MHz SDRAM, up to 32 G

• Display
  17.3" 16:9 IPS FHD (1920x1080) anti-glare
• Graphic
  NVIDIA® GeForce® GTX970M with 3GB GDDR5
• Storage
  1TB HDD 7200 RPM With 256 G SSD
  2TB HDD 5400 With 128 G SSD
  1TB HDD 5400 With 8 G SSD
  Dual HDD Support(Optional)
  RAID0 Support (Optional)
  HDD Housing for 2ND HDD expansion
• Optical Drive
  Blu-Ray DVD Combo
  Super-Multi DVD
  Blue-ray Writer
• Card Reader
  2 -in-1 card reader ( SD/ MMC)
• Camera
  HD Web Camera
• Networking
  Integrated 802.11a/b/g/n/ac
  Built-in Bluetooth™ V4.0
  10/100/1000/Gigabits Base T
• Interface
  Headphone / surround out
  1 x Microphone-in jack
  1 x Headphone-out jack
  1 x VGA port/Mini D-sub 15-pin for external monitor
  4 x USB 3.0 port(s)
  1 x RJ45 LAN Jack for LAN insert
  1 x HDMI
  1 x Thunderbolt port
  1 x SD card reader
  1X AC adapter plug


• Audio
  Built-in Speakers And Digital Array Microphone
  Built-in subwoofer
  MaxxAudio support
• Battery
  8Cells 6000 mAh
• Power Adapter
  Output :
  19.5 V DC, 9.23 A, 230 W
  Input :
  100 -240 V AC, 50/60 Hz universal
  3/ 2 pin compact power supply system
• Dimensions
  416 x 318 x 20 ~53 mm (WxDxH) (w/ 8cell battery)
• Weight
  4.8 kg (with 8 cell battery)
