Asus ASUS T300chi

BIOS ASUS T300chi

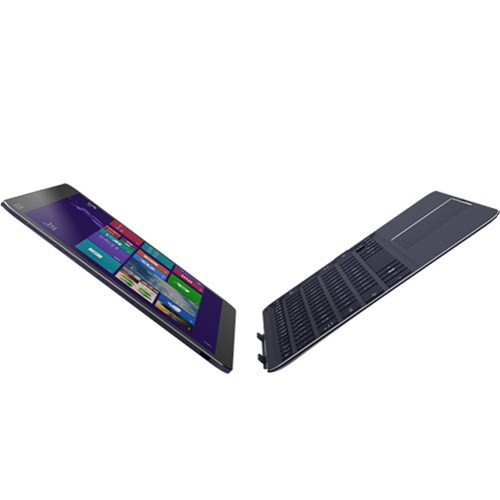

World's Thinnest 12.5” Detachable 2-in-1 Laptop

• Windows 8.1 Pro
• Ultra-slim 7.6mm-thin tablet transforms seamlessly into a laptop.
• See the finest details with the high-resolution WQHD (2560x1440) IPS display.
• The all-new Intel® Core™ processor is fast and power-efficient.

• Processor
  Intel® Core™ M 5Y10/5Y71 Processor
• Operating System
  Windows 8.1 Pro
  Windows 8.1
• Chipset
  Integrated Intel® CPU
• Memory
  LPDDR3 1600 MHz SDRAM, OnBoard Memory 4 GB / 8 GB

• Display
  12.5" Auto WQHD (2560x1440)/Full HD (1920x1080)
• Graphic
  Integrated Intel® HD Graphics 5300
• Storage
  - 128GB ISSD SSD (M.2 2280)
  - 256GB SSD (M.2 2280)
• Card Reader
  -in-1 card reader (Micro SD)
• Camera
  HD Web Camera
• Networking
  BT 4.0 support (on WLAN+ BT 4.0 combo card)
• Interface
  1 x COMBO audio jack
  1 x Micro USB
  1 x micro HDMI
  1 x Bluetooth On/Off Switch
  1X AC adapter plug


• Audio
  Built-in Speakers And Array Microphone

• Power Adapter
  Output :
  19 V DC, 1.75 A, 33 W
  Input :
  100 -240 V AC, 50/60 Hz universal
• Dimensions
  Tablet:
  317.8 x 191.61 x 7.6 mm (WxDxH)
  Dock: (Mobile Dock)
  317.8 x 191.61 x 8.9 mm (WxDxH)
• Weight
  Tablet:
  0.72 kg
  Dock: (Mobile Dock)
  0.72 kg
• Security
  HDD User Password Protection and Security
• Certificates
  UL, TUV, CE Marking Compliance, FCC Compliance, BSMI, Australia C-TICK / NZ A-Tick Compliance, CCC, Energy star, WEEE



ASUS T300CHI
Ver: 206



Repair guide
https://vinafix.vn/threads/asus-t300chi-repair-guide.21545/



ASUS T3 CHI T300CHIA MAIN BOARD REV2.1
25Q64FV BIOS
