EX-B150M-V5 D3

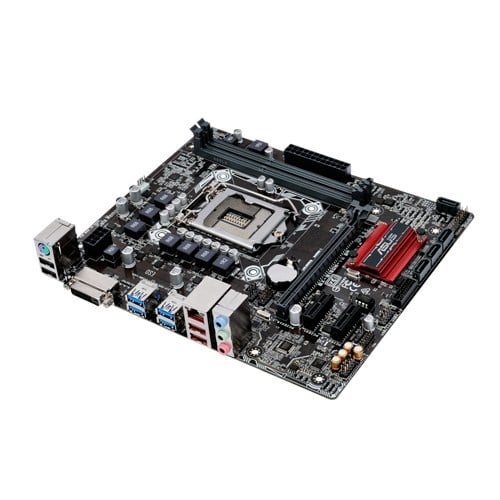

ASUS EX-B150M-V5 D3
BIOS EX-B150M-V5-D3-ASUS-0406 16MB

• CPU
  Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0

• Chipset
  Intel® B150
• Memory
  2 x DIMM, Max. 32GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * To prevent system instability, either install DDR3L DIMMs or DDR3 DIMMs with voltage lower than 1.5V.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 512 MB
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  2 x PCIe 3.0/2.0 x1
• Storage
  Intel® B150 chipset :
  4 x SATA 6Gb/s port(s), gray,
• LAN
  Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
  ASUS LAN Guard
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC featuring Crystal Sound 2*1
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• USB Ports
  Intel® B150 chipset :
  6 x USB 3.0/2.0 port(s) (4 at back panel, , 2 at mid-board)
  Intel® B150 chipset :
  6 x USB 2.0/1.1 port(s) (4 at back panel, blue, 2 at mid-board), 2 port(s) supports USB Over-Voltage Protection
• Special Features
  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 7 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  Non-stop Durability :
  - Anti-moisture coating - Outstanding protection against moisture and corrosion
  - USBGuard- 120% higher voltage tolerance
  - Anti-theft memory - Locked-down memory for everyday security
  Non-stop Gaming :
  - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Audio amplifier: Provides the highest-quality sound for headphone and speakers
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  - Top notch audio sensation delivers according to the audio configuration Separate layer for left and right track, ensuring both sound deliver equal quality
  Non-stop Challenger :
  - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS EZ Flash 3
  - ASUS MyLogo 2
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *2
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue) Type-A
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x TPM header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.7, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update

• Form Factor
  mATX Form Factor
  8.9 inch x 7.6 inch ( 22.6 cm x 19.3 cm )
• Note
  *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.



Asus EX-B150M-V5D3
Boardview TSICT
