BIOS PC H170-PLUS D3

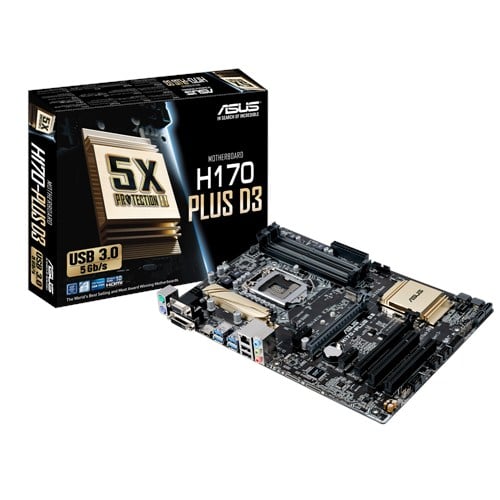

ASUS H170-PLUS D3
BIOS H170-PLUS-D3-ASUS-0404 16MB


Full-featured ATX H170 with 5X Protection II for dependable stability, DDR3/DDR3L memory compatibility, and UEFI BIOS with EZ Flash 3

• 5X Protection II – Advanced hardware safeguards for all-round protection
• DDR3/DDR3L memory compatibility
• Lightning-fast M.2 with PCIe® 3.0 x4 interface
• Epic gaming audio with noise-isolation design
• Media-acclaimed UEFI BIOS with EZ Flash 3
• Easy PC DIY with safe motherboard-mounting design
• Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance

• CPU
  Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

• Chipset
  Intel® H170
• Memory
  4 x DIMM, Max. 64GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * The maximum memory frequency supported varies by processor.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
  2 x PCIe 3.0/2.0 x1
  2 x PCI
• Storage
  Intel® H170 chipset :
  1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  4 x SATA 6Gb/s port(s), gray,
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*1
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *2
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB Ports
  Intel® H170 chipset :
  8 x USB 3.0/2.0 port(s) (4 at back panel, blue, 4 at mid-board)
  Intel® H170 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
• Special Features
  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 7 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost *3
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - Low EMI Solution
  - USB 3.0 Boost
  - Disk Unlocker
  - Mobo Connect
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  Media Streamer
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *3
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)

• Form Factor
  ATX Form Factor
  12 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
• Note
  *1： These functions will work depending on the CPU installed.
  *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *3: The function supported varies by processor.
  *4：Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
