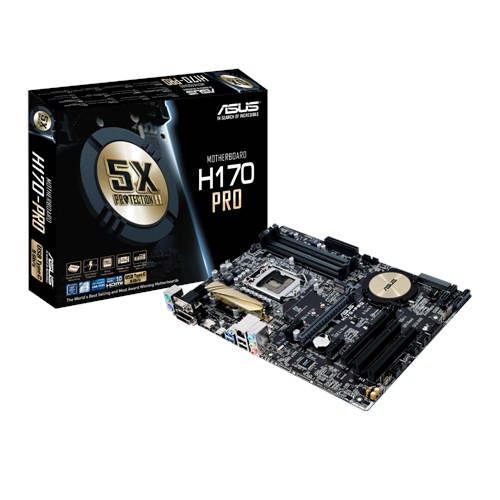

ASUS H170-PRO

Flagship ATX H170 with 5X Protection II for dependable stability, DDR4 support, and reversible USB Type-C connectivity

• 5X Protection II – Advanced hardware safeguards for all-round protection
• USB Type-C for convenient connectivity
• Epic gaming audio with noise-isolation design
• Media-acclaimed UEFI BIOS with EZ Flash 3
• Fan Xpert 3 advanced fan controls for ultimate cooling and silent performance
• Lightning-fast M.2 with PCIe® 3.0 x4 interface

• CPU
  Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

• Chipset
  Intel® H170
• Memory
  4 x DIMM, Max. 64GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  * Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
  2 x PCIe 3.0/2.0 x1
  2 x PCI
• Storage
  Intel® H170 chipset :
  1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  1 x SATA Express port, gray, Compatible with 2 x SATA 6.0 Gb/s ports
  6 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology*1
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *2
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• USB Ports
  Intel® H170 chipset :
  1 x USB 5Gb/s port(s) port(s) (1 at back panel, , Type-C, Reversible, Support 3A power output)
  Intel® H170 chipset :
  6 x USB 3.0/2.0 port(s) (2 at back panel, blue, Type-A, 4 at mid-board)
  Intel® H170 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, , Type-A, 4 at mid-board)
• Special Features
  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 7 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost *3
  - AI Suite 3
  - Ai Charger
  - M.2 & SATA Express
  - Anti-Surge
  - Low EMI Solution
  - USB 3.0 Boost
  - Disk Unlocker
  - Mobo Connect
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 3
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
  Media Streamer
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *4
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 5Gb/s port(s) Type-C ( support 3A power output )
  2 x USB 3.0 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)

• Form Factor
  ATX Form Factor
  12 inch x 8.8 inch ( 30.5 cm x 22.4 cm )
• Note
  *1： These functions will work depending on the CPU installed.
  *2: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *3: The function supported varies by processor.
  *4: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
