BIOS PC H170I-PLUS D3

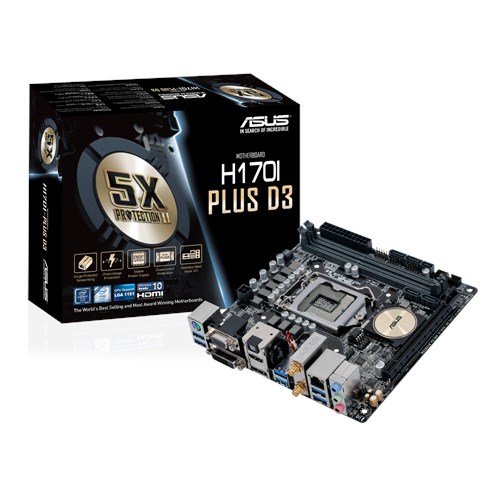

H170I-PLUS D3
BIOS H170I-PLUS-D3-ASUS-0403 16MB


Supreme mini-ITX H170 with onboard 802.11ac Wi-Fi, M.2 transfer, and 5X Protection II for dependable stability

• 5X Protection II – Advanced hardware safeguards for all-round protection
• DDR3/DDR3L memory compatibility
• 2x2 Dual-Band 802.11ac + BT4.0 connectivity
• Media-acclaimed UEFI BIOS with EZ Flash 3
• Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance
• Lightning-fast M.2 with PCIe® 3.0 x4 interface

• CPU
  Intel® for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.


• Chipset
  Intel® H170
• Memory
  2 x DIMM, Max. 32GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * To prevent system instability, either install DDR3L DIMMs or DDR3 DIMMs with voltage lower than 1.5V.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Expansion Slots
  1 x PCIe 3.0/2.0 x16
• Storage
  Intel® H170 chipset :
  1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
  4 x SATA 6Gb/s port(s)
• LAN
  Intel® I219V, 1 x Gigabit LAN Controller(s)
• Wireless Data Network
  Wi-Fi 802.11 a/b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
  Support ASUS Wi-Fi Go! Utility
• Bluetooth
  Bluetooth V4.0
• Audio
  Realtek® ALC887 7.1-Channel High Definition Audio CODEC *1
  - Supports : Jack-detection, Front Panel Jack-retasking
• USB Ports
  Intel® H170 chipset :
  8 x USB 3.0/2.0 port(s) (6 at back panel, blue, 2 at mid-board)
  Intel® H170 chipset :
  4 x USB 2.0/1.1 port(s) (4 at mid-board)
• Special Features
  ASUS 5X Protection II :
  - ASUS LANGuard - 2.5X higher surge tolerance
  - ASUS Overvoltage Protection - World-class circuit-protecting power design
  - ASUS DIGI+ VRM - 6 Phase digital power design
  - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
  - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
  - ASUS ESD Guards - Electrostatic discharge protection
  ASUS EPU :

  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-DIMM
  Media Streamer
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit *2
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  6 x USB 3.0 (blue)
  1 x Optical S/PDIF out
  3 x Audio jack(s)
  1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, blue)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)

• Form Factor
  Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Note
  *1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.



Asus H170I-PLUS-D3 RG
