BIOS PC NF533D4-1900

Discussion in 'BIOS/UEFI' started by technical, Sep 17, 2015.

BIOS PC NF533D4-1900 5 5 1votes
5/5, 1 vote

  1. technical

    technical Moderator Staff Member

    Joined:
    Dec 13, 2013
    Messages:
    64,627
    Likes Received:
    4,729

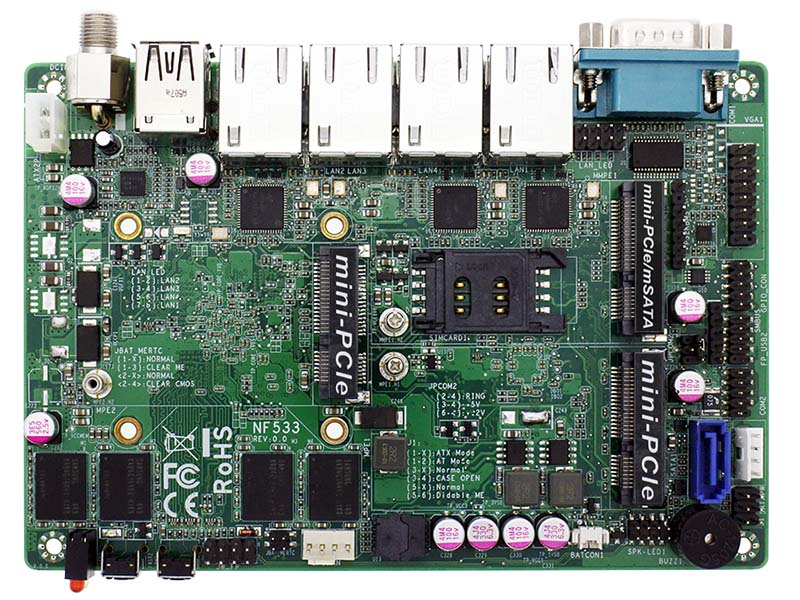

    NF533D4-1900
    BAR3NA01

    [​IMG]

    Intel® Bay Trail Celeron® Processor J1900 2.0G Quad Core
    2. Integrated Intel® HD Graphics, VGA interface,
    Max. Resolution 2560 x 1600/60Hz
    3. Support DDR3L 1333MHz Single Channel,
    Onboard 4GB System Memory
    4. 4 * Intel i211AT PCIe GbE LAN
    5. 1 * Serial ATAII (3Gb/s)
    6. 1 * External COM (RS232), 1 * Internal COM (RS232)
    7. 1 * External USB3.0, 1 * USB1.1/2.0, 2 * Internal USB1.1/2.0
    8. 2 * Full size mPCIe, 1 * Full size mPCIe shared with mSATA
    9. 1 * SIM Card Holder
    10. Lockable DC-in PWR JACK
    11. 3.5” Form Factor (148mm x 102mm)


    Attached Files:

    #1 technical, Sep 17, 2015
