BIOS PC NMF92-H61

Discussion in 'BIOS/UEFI' started by technical, Sep 18, 2015.

  1. technical

    technical Moderator Staff Member

    Joined:
    Dec 13, 2013
    Messages:
    64,627
    Likes Received:
    4,729

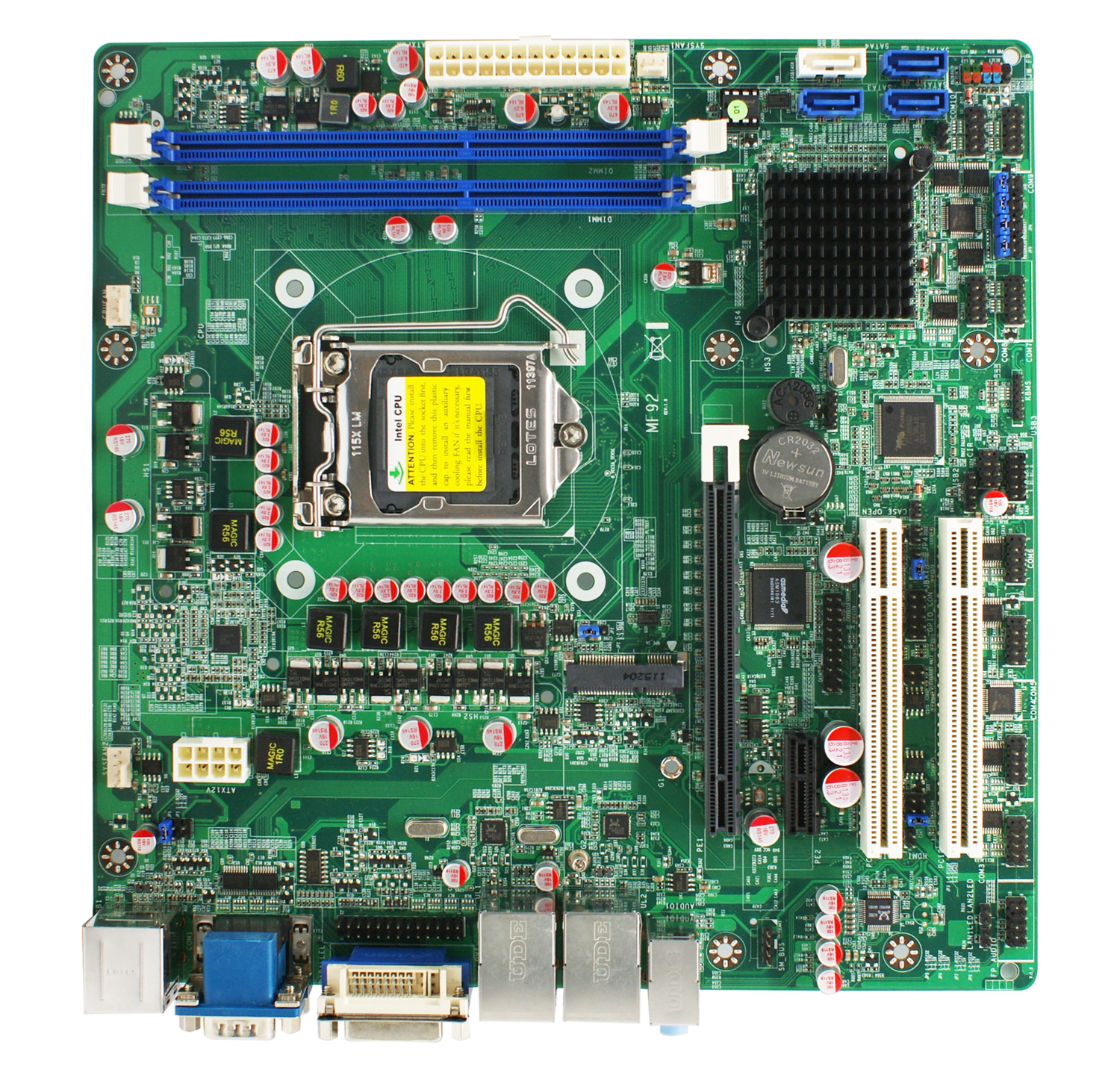

    NMF92-H61

    [​IMG]
    1. INTEL® H61 Chipset
    2. Support INTEL® LGA 1155 Socket Core™ i3, i5, i7 & Pentium Processors
    3. Support 2 * 240 pin 4GB 1333/1066 Dual CH DDR3 SDRAM DIMM Max. up to 16GB
    4. Support TPM 1.2 function
    5. 1 * Mini PCI-E slot (Selectable W/mSATA)
    6. 4 * SATA2 connectors (SATA4 share with mSATA)
    7. HDMI, DVI-D and VGA Video Outputs
    8. Support 10 * COM ports (COM3 for RS232/422/485)
    9. Support CPU Smart FAN
    10. Supports 2 * Gigabit LAN
    11. Supports ACPI S3 Function
    12. Support Watch dog Technology
    13. Micro ATX form factor

    #1 technical, Sep 18, 2015
