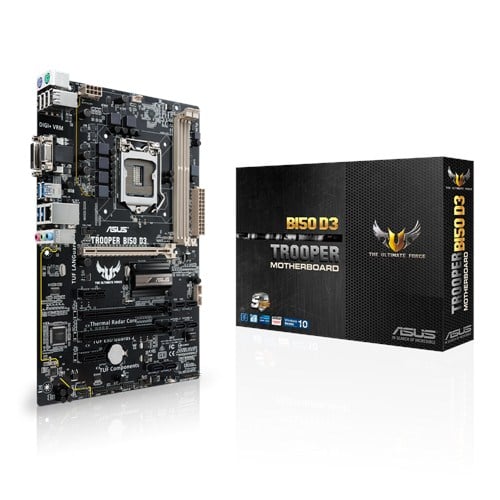

ASUS TROOPER B150 D3
BIOS TROOPER-B150-D3-ASUS-0212 16MB

Best-value TUF B150 ATX board with military-grade components and cooling tech to guarantee 24/7 durability

• TUF Certified 24/7 durability - Promised Reliability with Strict Testing
• TUF LANGuard - Exclusive military-grade LAN protection
• TUF ESD Guards 2 - 2X Stronger ESD protection for extended component lifespan
• TUF Audio Design– LED-lit shielding and noise reduction
• TUF Thermal Radar Core - Complete System Cooling, Customized Fan Tuning
• TUF Components [Caps, Chokes & MOSFETs; Certified by Military-standard] – Certify for Tough Duty

• CPU
  Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® B150
• Memory
  2 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * To prevent system instability, either install DDR3L DIMMs or DDR3 DIMMs with voltage lower than 1.5V.
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : DVI/RGB ports
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16
  1 x PCIe 3.0/2.0 x16 (x1 mode, black)
  1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)
  2 x PCIe 3.0/2.0 x1
• Storage
  Intel® B150 chipset :
  6 x SATA 6Gb/s port(s), black,
  Intel® Rapid Storage Technology supports
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
  Audio Feature :
  - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
  Separate layer for left and right track, ensuring both sound deliver equal quality
• USB Ports
  Intel® B150 chipset :
  6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
  Intel® B150 chipset :
  6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board), 2 port(s) supports USB Over-Voltage Protection
• Special Features
  TUF ENGINE! Power Design :
  - 3 +2 Digital Phase Power Design
  - TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
  - ASUS DIGI+ VRM Utility
  Ultimate COOL! Thermal Solution :
  - TUF Thermal Radar Core
  Safe & Stable! Guardian Angel :
  - TUF ESD Guards 2
  - TUF LANGuard
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS EZ DIY :
  - ASUS O.C. Profile
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Multi-language BIOS
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue)
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, beige)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin, [Black])
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x DRCT header(s)
  1 x CPU OV
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x TUF Certification card(s)
  1 x TUF 5 Year Warranty manual(s) (by region)
  1 x TUF Inside sticker(s)(white)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS/TUF CPU-Z
  Anti-virus software (OEM version)
• Form Factor
  ATX Form Factor
  12 inch x 7.1 inch ( 30.5 cm x 19.8 cm )
