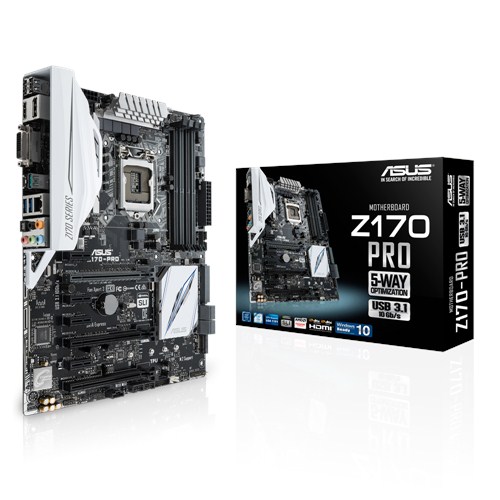

ASUS Z170-PRO BIOS Z170-PRO-ASUS-1101 One click for superb performance, with Intel® USB 3.1 Controller 5-Way Optimization: One click to optimize your entire system; plus a dedicated onboard water-pump header Intel® USB 3.1 on board: One Type-A port plus a reversible Type-C port ASUS Pro Clock Technology: Extends base clocks and improves stability for extreme overclocking Crystal Sound 3, Intel LAN and Turbo LAN: Flawless audio and low-latency networking 5X Protection II: Advanced hardware safeguards CPU Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list Chipset Intel® Z170 Memory 4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz Maximum shared memory of 512 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 2-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ Technology Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1 4 x PCIe 2.0 x1 Storage Intel® Z170 chipset : 1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 x4 Socket 3, *2, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology*4 LAN Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY) Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance ASUS Turbo LAN Utility ASUS LAN Guard Audio Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound - DTS Connect - DTS Studio Sound - Optical S/PDIF out port(s) at back panel - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Audio amplifier: Provides the highest-quality sound for headphone and speakers - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Unique de-pop circuit: Reduces start-up popping noise to audio outputs - Top notch audio sensation delivers according to the audio configuration - EMI protection cover to prevent electrical noise to affect the amplifier quality - Absolute Pitch 192khz/24bit true BD lossless sound - Power pre-regulator: Reduces power input noise to ensure consistent performance Separate layer for left and right track, ensuring both sound deliver equal quality USB Ports Intel® Z170 chipset : 6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board) Intel® Z170 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board) Intel® USB 3.1 controller : 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, , Type-C) Intel® USB 3.1 controller : 1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, teal blue, Type-A) Special Features OC Design - ASUS PRO Clock Technology - Full BCLK range for extreme overclocking performance 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 8 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS TPU : - Auto Tuning - GPU Boost ASUS EPU : - EPU ASUS Digital Power Design : - Industry leading Digital 8 Phase Power Design ASUS Exclusive Features : - Remote GO! - MemOK! - AI Suite 3 - Ai Charger - M.2 & SATA Express - Anti-Surge - Front Panel USB 3.0 Support - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 3 - EZ XMP ASUS Exclusive Features - Mobo Connect - PC Cleaner Remote Entertainment - Media Streamer - HyStream ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 3 ASUS EZ DIY : - DirectKey - Precision Tweaker 2 - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS - Push Notice ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Special Memory O.C. Design Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Media Streamer Turbo App Fan Xpert 3 Operating System Support Windows® 10 , 64bit Windows® 8.1 , 64bit Windows® 7 Back I/O Ports 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Type-C 1 x USB 3.1 (teal blue)Type-A 2 x USB 3.0 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 1 x 8-channel Audio I/O Internal I/O Ports 2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports 1 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (4 x 4 -pin) 1 x S/PDIF out header(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Water Pump header (4-pin) 1 x 14-1 pin TPM connector Accessories User's manual ASUS Q-Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x SLI bridge(s) 1 x Q-connector(s) (1 in 1) BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE Support Disc Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) Form Factor ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1: The PCIe x16_3 slot shares bandwidth with SATA6G_56. The PCIe x16_3 is default set at x2 mode. Supports Intel® RST for PCIE RAID storage. *2: Supports PCIE RAID configurations via onboard M.2 and PCIex16_3. *3: M.2 shares SATA mode with SATA Express. Change this item before installing M.2 SATA devices. *4: These functions will work depending on the CPU installed.
