BIOS PC Z170I PRO GAMING

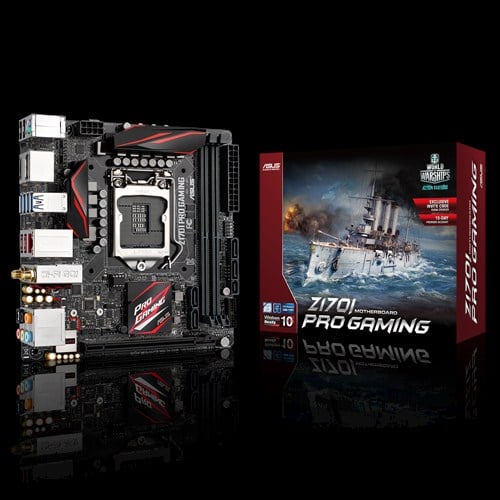

ASUS Z170I PRO GAMING
BIOS Z170I-PRO-GAMING-ASUS-0401

Miniaturized size, maximized gaming fun

• LGA1151 socket for 6th-gen Intel® Core™ i7 / Core i5 / Core i3, Pentium® and Celeron Processors
• Dual DDR4 4000 (OC) support
• SupremeFX: Flawless audio that makes you part of the game
• Sonic Radar ll: Scan and detect your enemies to dominate
• Intel Gigabit Ethernet, LANGuard and GameFirst technologies: Top-speed protected networking
• 5-Way Optimization and Pro Clock technology: Easy and stable overclocking
• RAMCache: Speed up your game loads
• Gamer's Guardian: Highly-durable components and smart DIY features
• 2x2 Wi-Fi with MU-MIMO, USB 3.1 Type-A and M.2: Ultra-speedy transfers for faster gaming

• CPU
  Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

• Chipset
  Intel® Z170
• Memory
  2 x DIMM, Max. 32GB, DDR4 3400(O.C.)/3333(O.C.)/3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
  - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Expansion Slots
  1 x PCIe 3.0/2.0 x16
• Storage
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports
  1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*1
  2 x SATA 6Gb/s port(s)
  Supports Intel® Smart Response Technology*2
• LAN
  Intel® I219V, 1 x Gigabit LAN Controller(s), GameFirst technology
  Anti-surge LANGuard
• Wireless Data Network
  Wi-Fi 802.11 a/b/g/n/ac
  Supports dual band frequency 2.4/5 GHz
  Support ASUS Wi-Fi Go! Utility
• Bluetooth
  Bluetooth V4.1
• Audio
  SupremeFX 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  - High quality 115 dB SNR stereo playback output
  Audio Feature :
  - SupremeFX Shielding™ Technology
  - Optical S/PDIF out port(s) at back panel
  - Sonic Radar II
• USB Ports
  ASMedia® USB 3.1 controller :
  2 x USB 3.1 port(s) (Type-A)
  Intel® Z170 chipset :
  6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)
  Intel® Z170 chipset :
  4 x USB 2.0/1.1 port(s) (2 at back panel, black, 2 at mid-board)
• Special Features
  ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
  - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 2+, and Turbo App
  Gamer's Guardian:
  - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
  - DRAM Overcurrent Protection
  - Stainless Steel Back I/O
  - Highly Durable Components
  - DIGI+ VRM
  ASUS TPU :
  - Auto Tuning
  - TurboV
  - GPU Boost
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger+
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - USB 3.1 Boost
  - Disk Unlocker
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Media Streamer
  RAMCache
• Operating System Support
  Windows® 10 , 64bit
  Windows® 8.1 , 64bit
  Windows® 7 , 32bit/64bit
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 (red)Type-A
  4 x USB 3.0
  2 x USB 2.0
  1 x Optical S/PDIF out
  5 x Audio jack(s)
  2 x Wi-Fi antenna port(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x SATA Express connector: gray, Compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
  2 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
• Accessories
  User's manual
  ASUS Q-Shield
  M.2 2242 mounting kit
  4 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x CPU installation tool
  1 x Supporting DVD
  1 x 12 in 1 Cable Label (s)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 3.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  ASUS EZ Update
  Anti-virus software (OEM version)

• Form Factor
  Mini ITX Form Factor
  6.7 inch x 6.7 inch ( 17 cm x 17 cm )
• Note
  *1:For a 2242 storage device, use the bundled 2242 mounting kit.
  *2:These functions will work depending on the CPU installed.
